    150-300m Store Volume ERW Pipe Mill Production Line With Advanced Electric System

    Ask Lasest Price
    Brand Name : TXH
    Model Number : 25.4-660
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union
    Supply Ability : 30 sets per year
    Delivery Time : withern 90 days
    • Product Details
    • Company Profile

    150-300m Store Volume ERW Pipe Mill Production Line With Advanced Electric System

    High Frequency Straight Seam Welding Pipe Roll Forming Machine is designed to produce welded pipes of 25.4~660mm in diameter and 0.6~20mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

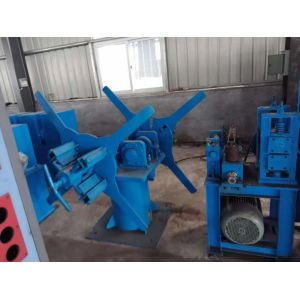

    The decoiler of High Frequency Straight Seam Welding Pipe Roll Forming Machine is of the structure of double expansion and cantilever mandrels. It contains two main parts: main body and the fixed base. The main body is equipped with pneumatic system to satisfy the needs of expanding, contracting and braking of the mandrels.
    Its main function is to store a certain amount of steel strip for supplying main machine before it doing head and end welding to make sure main machine's continuous production without stopping
    (1) Structure: squirrel cage type plate welding part with automatic feeding and delivery system.(2) Adjusting method: Manual spiral adjusting.
    (3) Store volume: 150-300m.
    Specification

    Model
    Diameter of welded tube(mm)
    Wall thickness of welded tube(mm)
    Speed of tube welding(m/min)
    Power of main motor(kw)
    High frequency power(kw)
    ZG16
    8-25
    0.25-1.0
    30-100
    30
    60
    ZG25
    8-32
    0.35-1.3
    30-100
    45
    100
    ZG32
    13-50.8
    0.5-2.0
    30-90
    110
    150
    ZG50
    20-63.5
    0.6-2.5
    30-90
    160
    200
    ZG60
    25-63.5
    0.8-3.0
    20-80
    185
    250
    ZG76
    25-80
    1.2-4.0
    20-70
    200
    300
    ZG90
    32-90
    1.5-4.5
    20-60
    110x2
    400
    ZG115
    38-115
    2.0-5.0
    20-60
    160x2
    400
    ZG165
    80-165
    2.0-6.0
    15-50
    200x2
    500
    ZG219
    90-219
    3.0-8.0
    15-50
    250x2
    600
    ZG273
    185-273
    4.0-10.0
    15-40
    250x1 185x2
    800
    ZG300
    165-355
    4.0-12.0
    15-30
    250x2 200x2
    1200
    Manufacturing Process of the Pipe
