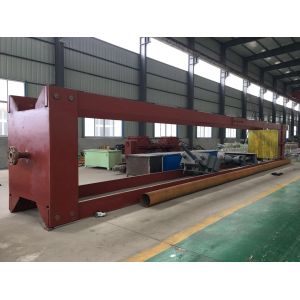

China made high accuracy hydro testing machine for steel tubes pressure testing
Hydrostatic testing machine for spiral welded pipe is mainly used to have a pressure test on spiral welded pipe or straight seam welded pipe. This hydrostatic tester uses water to inspect whether the steel has been welded properly or not, whether the steel is flawed or not and also what will be the maximum pressure that the stainless steel can sustain. There are three different testing sizes as light size for small tube, medium size and heavy size for large diameter pipe.
By usage, our hydrostatic testing machine can be grouped into: Hydrostatic tester for spiral welding pipes, high frequency straight seam welding pipes and ordinary fluid delivery pipe lines; High pressure and high efficiency hydrostatic tester for petroleum jacket pipes. Drill column and oil pumping pipes; By structure, they can be grouped into: Twin beams with lower feeding type, twin beams with lower feeding type, four beams with middle feeding type. Twin beams with lower feeding type is the most efficient model among all our hydrostatic testing machine products.
Our leading product is pipe equipment. The technology and quality of our products are as good as that in Taiwan or Korea. But the price is far lower than that in Taiwan or Korea. With good economical efficiency and applicability, hydrostatic testing machine for spiral welded pipe shares good reputation among users. We have the clients from almost 20 provinces. Besides, the products are exported to many other countries such as Malaysia, Indonesia, Thailand, Iran, Poland, Uzbekistan and so on.
| NO | OD range(mm) | pipe length (mm) | Max testing pressure(Mpa) | Thrust(t) | Total power |
| 1 | 21-60 | 4000-12000 | ≤ 70 | 40 | 45 |
| 2 | 73-114 | 4000-12000 | ≤ 70 | 80 | 45 |
| 3 | 89-219 | 4000-12000 | ≤ 70 | 260 | 70 |
| 4 | 168-426 | 4000-12000 | ≤ 40 | 420 | 90 |
| 5 | 219-630 | 4000-12000 | ≤ 30 | 1000 | 130 |
| 6 | 325-820 | 4000-12000 | ≤ 30 | 1600 | 200 |
| 7 | 530-1020 | 4000-12000 | ≤ 25 | 2000 | 300 |
| 8 | 720-1420 | 4000-12000 | ≤ 20 | 3000 | 400 |
Production Process of Hydrostatic Testing Machine for Spiral Welded Pipe
Loading → Pipe-Connecting → Pipe-Filling → Water-Pressuring
Pressure → Maintaining → Pressure Releasing → Draining → Exit Pipe
Product display
